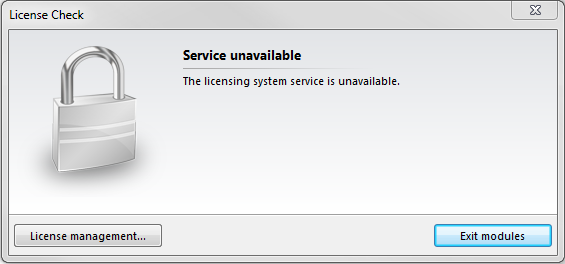

The coDiagnostiX license service is another important part of the coDiagnostiX software licese system It is the interface between the eToken device driver and the coDiagnostiX software. Without it, coDiagnostiX is not able to communicate with the dongle. When coDiagnostiX recognizes that no license service is running, it will show a notification.

To enable the license service, open the Windows Explorer and navigate to the eToken folder in the coDiagnostiX Program Files path:

Straumann Version (v7, v8.x):

• 32-Bit Windows C:\Program Files\Straumann\coDiagnostiX\eToken
• 64-Bit Windows C:\Program Files (x86)\Straumann\coDiagnostiX\eToken

Dental Wings Version (v8.6, v9.X):

• 32-Bit Windows C:\Program Files\coDiagnostiX\coDiagnostiX.App\eToken
• 64-Bit Windows C:\Program Files (x86)\coDiagnostiX\coDiagnostiX.App\eToken

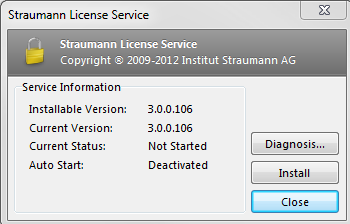

Run the corresponding license file (IVSSLMSrv.exe ¹⁾ or STMSLMSrv.exe ²⁾) with administrative privileges and click on Install.

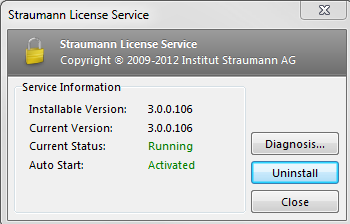

Now make sure that the current status is displayed as running and that the automatic start is displayed as activated.

⇒

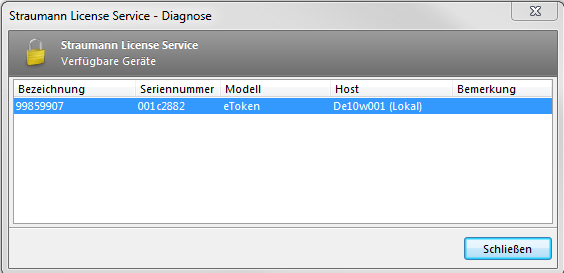

A click on the Diagnosis… button brings up a list of recognized dongles, regardless of whether they are connected locally or through the network.
